TF-3620 system builder

Build your TF-3620 system.

Configure the profiles, glass mounting kit, corners, end caps, installation aids and tools required for your project.

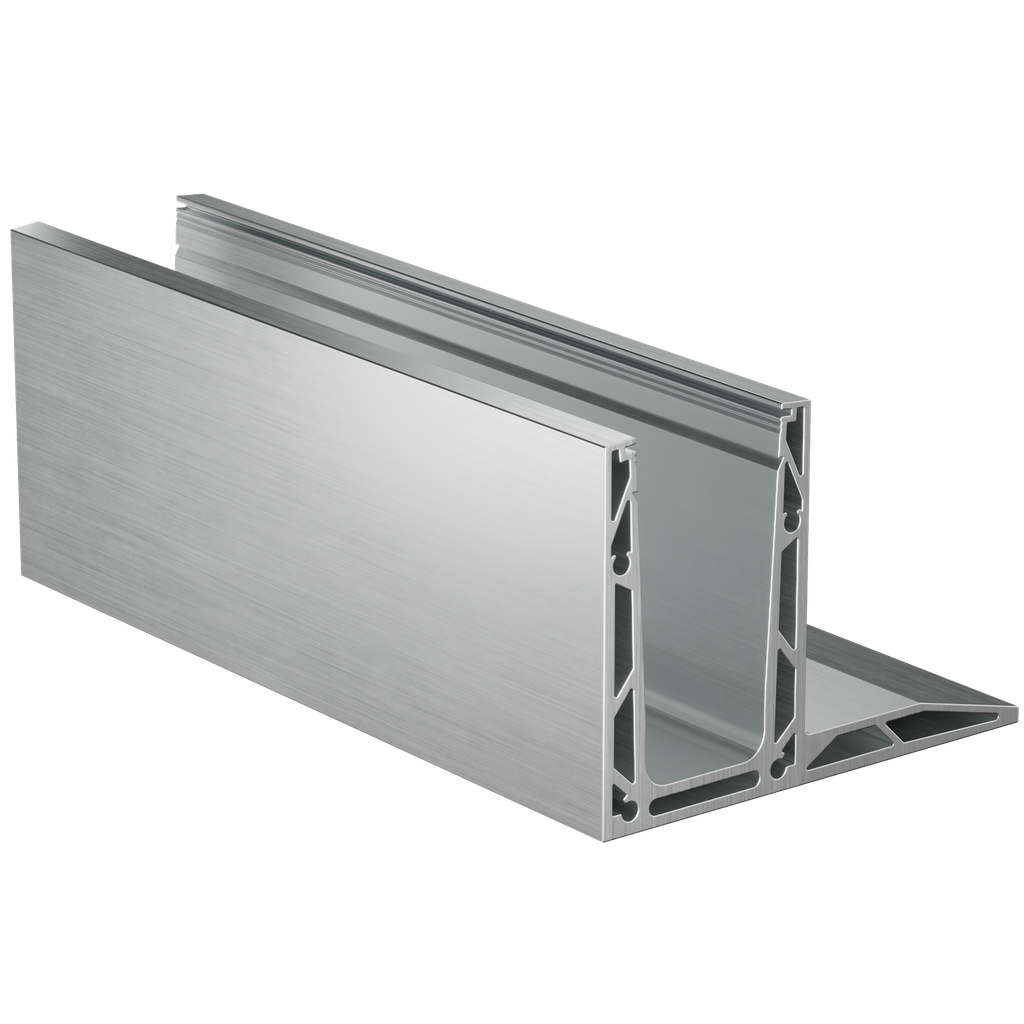

TF-3620 selected Top / floor mounted F-shape TURBOFLEX profile. Review your completed system before adding all selected products to basket.

Step 1 of 5

Profiles

Enter the total required metreage, choose the finish and select your preferred stock lengths.

Enter total required metreage

Enter the total linear metres of TF-3620 profile required.

Total metreage

Choose finish

Select how you would like the aluminium supplied.

Choose powder coating type

Start typing a RAL colour and select one of the available webshop options. Only colours already set up in Odoo can be added to basket.

RAL colour

Choose a colour from the available list.

Choose stock length preference

Choose whether to minimise wastage, use shorter lengths for access or use 5000mm lengths only.

Step 2 of 5

Choose glass thickness

Your glass selection ensures the correct TURBOFLEX mounting kit is supplied alongside the profiles.

Step 3 of 5

Accessories

Add inside and outside corners, left and right end caps, and any straight joins required.

Corners

TF-3620 uses separate inside and outside corner products. Joining pin packs are calculated automatically for the corners you select.

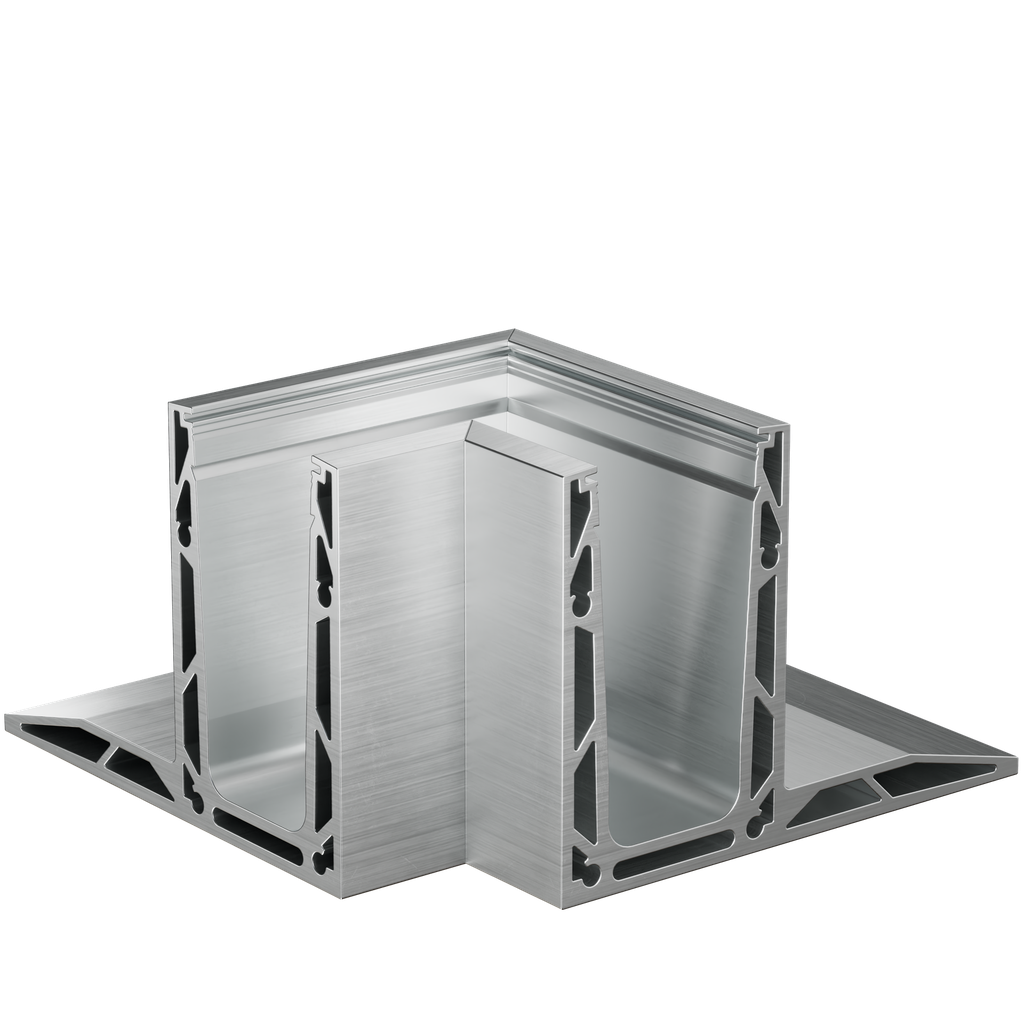

Inside corner

For changes of direction in the profile run.

Automatically include joining pins

Outside corner

For changes of direction in the profile run.

Automatically include joining pins

End caps

TF-3620 uses separate left and right hand end caps. Add the quantity required for each open end.

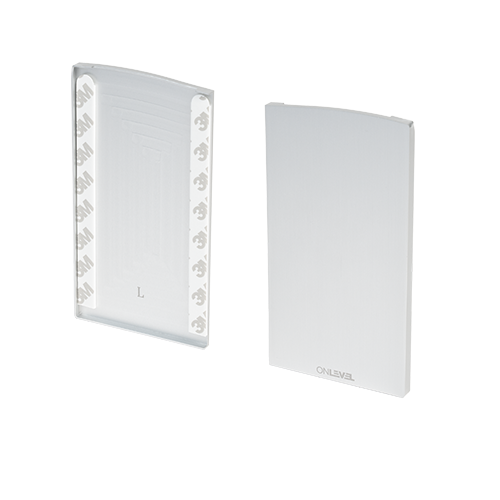

Left hand end cap

For open ends of the profile run.

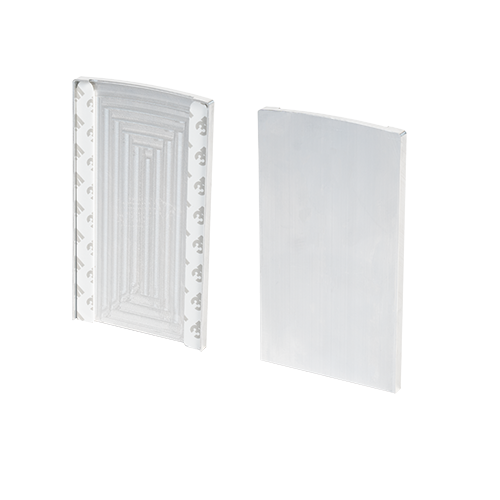

Right hand end cap

For open ends of the profile run.

Other joins

This is for all straight joins over and above the corners.

Number of joins

Do not include inside or outside corners here.

Automatically include joining pins

Step 4 of 5

Installation aids

Add useful products that help with adjustment and drainage during installation.

Add height adjustersHeight adjusters can be added beneath each glass panel and provide approximately ±3mm of vertical adjustment.

Height adjusters (pack of 2)

We suggest one pack of height adjusters per glass panel. The quantity is automatically calculated using approximately 1000mm wide panels against the total metreage entered. Adjust this quantity if your panels are a different width.

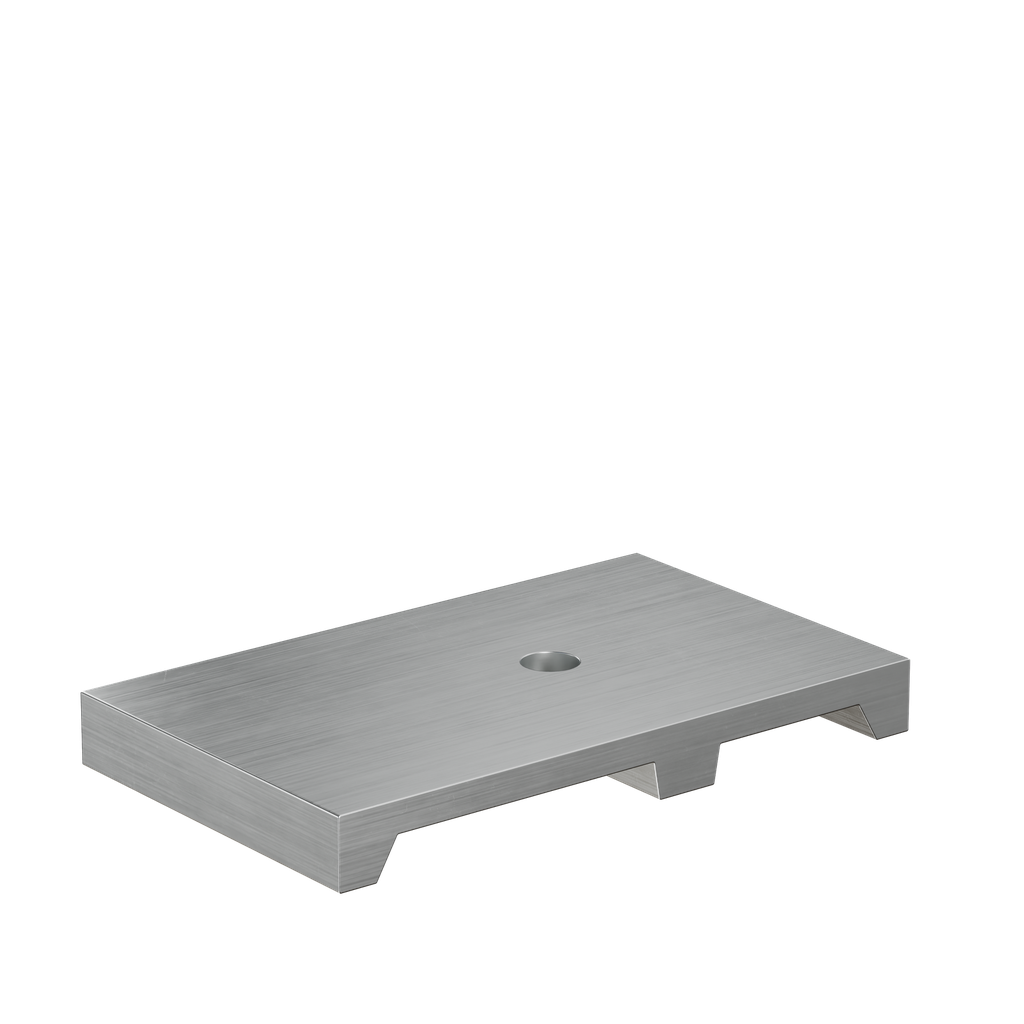

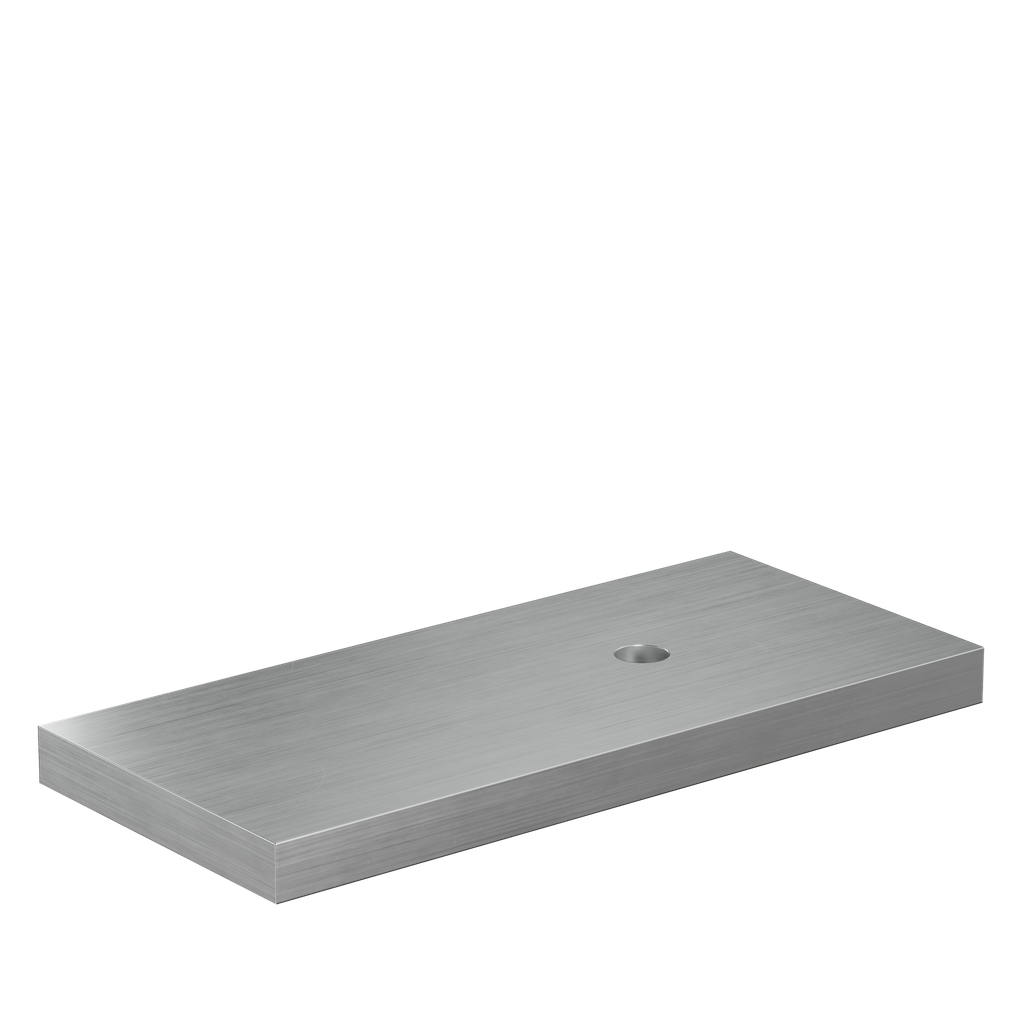

Add spacersSpacers can be positioned beneath the channel to lift it slightly from the substrate and provide an additional water drainage solution.

Spacers (pack of 10)

The suggested quantity is automatically calculated to cover all pre-drilled fixing holes in the selected profile lengths. Adjust this quantity if required.

Step 5 of 5

Add tools

Recommended TURBOFLEX tools are selected automatically and can be removed if you already own them.

Review

Review your TF-3620 system

Check your full selection before adding the products to your basket.

Profiles

Glass

Accessories

Installation and tools

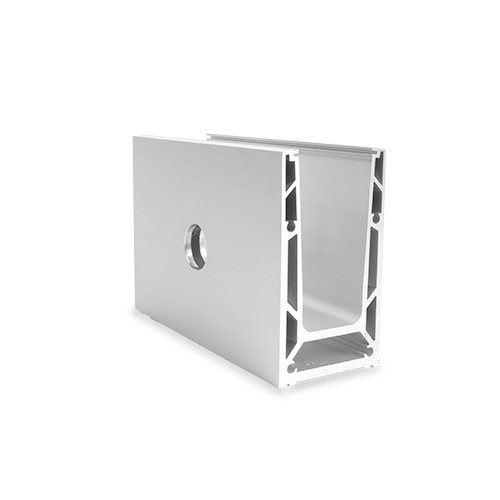

TF-6621 system builder

Build your TF-6621 system.

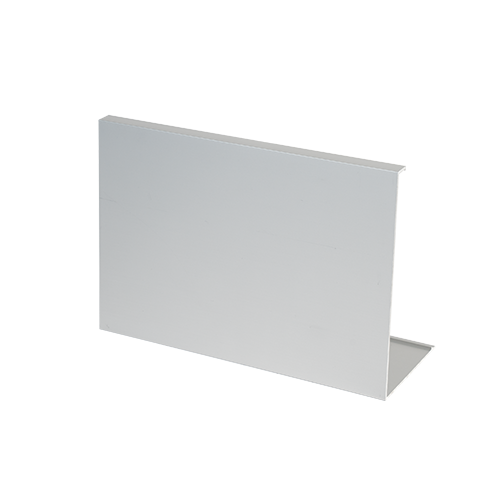

Configure the profiles, optional front cover profile, glass mounting kit, accessories, installation aids and tools required for your project.

TF-6621 selectedSide / fascia mounted U-shape TURBOFLEX profile with optional matching front cladding. Review your completed system before adding all selected products to basket.

Step 1 of 5

Profiles

Enter the total required metreage, choose the finish, select your preferred stock lengths and decide whether to include the matching front cover profile.
